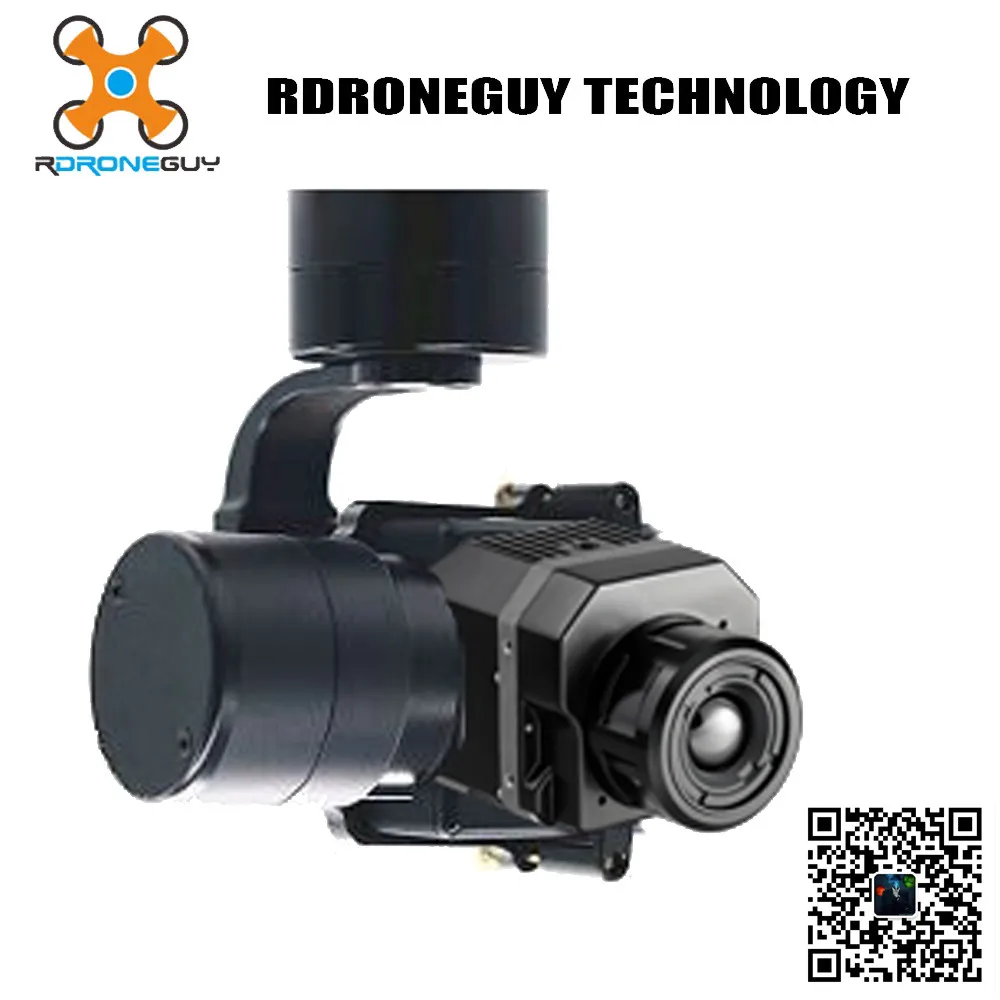

Infrared Thermal Imager High-Tension Busbar Line Inspection Drone Zenmuse Xt Gimbal Infrared Thermal Camera

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Style:
Radio Control Toy
Type:
Other
Power:
Other
Material:
Plastic
Scale:
Other
Radio Control Style:
RC Model
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Zenmuse
Model Number:
Zenmuse XT
Zenmuse XT Color:
White
Zenmuse XT Place of Origin:
Guangdong, China (Mainland)
Zenmuse XT Model:
Zenmuse XT
Zenmuse XT Dimensions:
103 mm x 74 mm x 102 mm
Zenmuse XT Weight:
270 g
Zenmuse XT Max Controllable Speed:
120°/s
Zenmuse XT Angular Vibration Range:
±0.03°
Zenmuse XT Mount:
Detachable
Zenmuse XT Thermal Imager:
Uncooled VOx Microbolometer
Zenmuse XT Pixel Pitch:
17 μm
Supply Ability
Supply Ability:
888 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
carton & pallets
Port
shenzhen/guangzhou
Specification

Infrared Thermal  Imager High-Tension Busbar Line Inspection Drone Zenmuse Xt Gimbal  Infrared Thermal Cameraa


Our product mainly include professional drone, agras drone, mini drone, toy drones, hobby drone, RC toys for kids, remote control toys, goggle glasses, stabilizer.





ModelZenmuse XT
Dimensions103 mm x 74 mm x 102 mm
Weight270 g
Angular Vibration Range±0.03°
MountDetachable
Controllable RangeTilt:+35° to -90°; Pan:±320°; Roll:±15°
Mechanical RangeTilt:+45° to -135° Pan:±320° Roll:±45°
Max Controllable Speed120°/s
Thermal ImagerUncooled VOx Microbolometer
FPA/Digital Video Display Formats

640 × 512   336 × 256

Analog Video Display Formats720 × 480 (NTSC); 720 × 576 (PAL)
Pixel Pitch17 μm
Spectral Band7.5 - 13.5 μm
NTSC/PAL (field switchable)yes
Image Optimizationyes

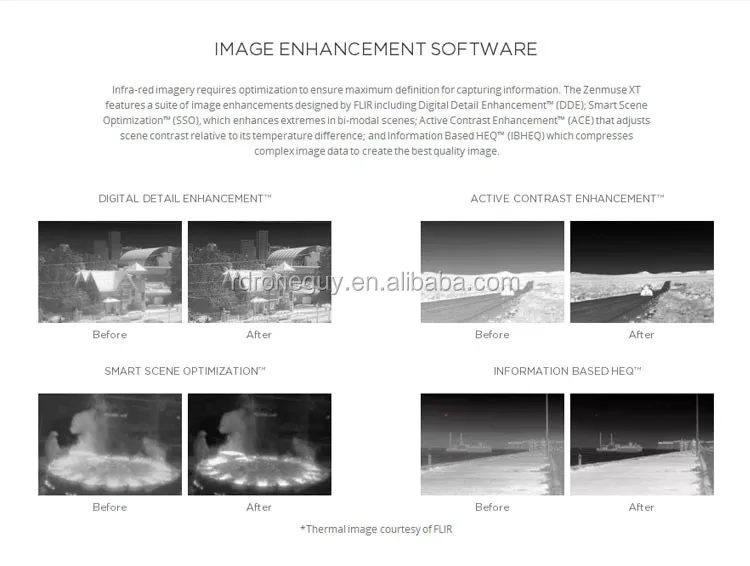

Digital Detail Enhancementyes
Polarity Control (black hot/white hot)yes
FUNCTON
  1. power line inspection
  2. solar panel inspection
  3. search and rescue
  4. precision agriculture
  5. fire fighting

                             Integrated thermal camera

Thermal ImagerUncooled VOx Microbolometer
FPA/Digital Video Display Formats640 × 512
Pixel Pitch17 μm
Full Frame Rates30 Hz (NTSC)  25 Hz (PAL)
Exportable Frame Rates<9Hz *
Sensitivity (NEdT)<50 mK at f/1.0
Photo FormatsJPEG (8 bit) / TIFF (14 bit)
Video FormatMP4
Digital Zoom2x, 4x, 8x

 Original drone Zenmuse XT HD camera infrared thermal imager aerial thermal imaging Capture faster with pinpoint precision

Infrared thermal gimbal camera imager power line inspection dji drone Zenmuse XTInfrared thermal gimbal camera imager power line inspection dji drone Zenmuse XT

Infrared thermal gimbal camera imager power line inspection dji drone Zenmuse XTInfrared thermal gimbal camera imager power line inspection dji drone Zenmuse XT Infrared thermal gimbal camera imager power line inspection dji drone Zenmuse XT Infrared thermal gimbal camera imager power line inspection dji drone Zenmuse XT Infrared thermal gimbal camera imager power line inspection dji drone Zenmuse XT
