2019 new hot selling gimbal stabilizer Ronin S professional 3Axis gimbal Stabilization with long Battery Life for handheld dslr

  • 1 - 4 Pieces
    $435.00
  • >=5 Pieces
    $418.00
Color:
Black
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Ronin-S
Place of Origin:
Guangdong, China(Mainland)
Model Number:
Ronin S
Dimension:
630*550*330mm
Weight:
1.85 kg
Max Loading Capacity:
3.6 kg
Suitable for:
SLR camera,Mirrorless camera
Working time:
12Hours
Function:
handheld gimbal
Type:
Camera handheld gimbal
Advantage:
Panorama,Timelapse, Motionlapse,Track
Supply Ability
Supply Ability:
9999 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in carton;
Port
Guangzhou/Shenzhen
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

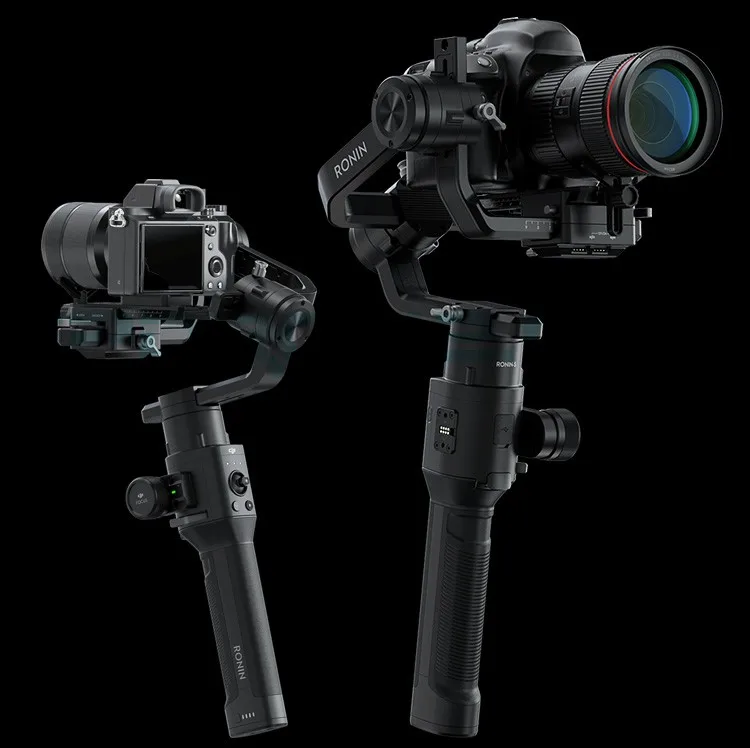

Ronin S , professional 3 axis gimbal stabilizer ,professional designed for DSLR and mirrorless cameras, and you can early control in a single-handed .

Ronin S ,portable. versatile. ergonomic.automated creative features and all in one control. You can take more high quality ,smooth and clarity photo and videos. With within the DJI Ronin app, there are more creative professional filmmaking potential , letting you create more ideas.

Ronin s is suitable for professional shooting field, film shooting, TV station, large-scale activity scene. It create clarity, smoothness, and a refreshing photo and video.

PERIPHERAL
Camera Tray Dimensions
Maximum depth from the center of gravity on the camerabase plate: 98 mm
Maximum height measured from top of the camera base plate: 150 mm
Maximum width: 205 mm
Accessory Port
Mechanical: 1/4"-20, 3/8"-16 Mounting Hole, M4 Mounting Hole
Electrical: 12V/2A Power Accessory Port, Camera Control Port, 8-pin Port
Input Power
Model: RB1-2400mAh-14.4V
Type: 18650 LiPo
Capacity: 2400 mAh
Energy: 34.56 Wh
Connections
Bluetooth 4.0/USB-C
Assistant 2 Requirements
Windows 7 or above/Mac OS X 10.11 or above
Ronin App Requirements
iOS 9.0 or above/Android 4.4 or above
MECHANICAL & ELECTRICAL CHARACTERISTICS
Working Current
Static current: ≈0.16 A
Bluetooth Operating Frequency
2.4 to 2.48 GHz
Bluetooth Transmitter Power
0 dBm
Operating Temperature
-4° to 113° F (-20℃ to 45℃)
Weight
Approx. 3.3 lb(gimbal only), Approx. 4.1 lb (gimbal and grip included)
Dimensions
Approx. 202×185×486 mm
WORKING PERFORMANCE
Load Weight (Reference Value)
3.6 kg (Handheld)
Angular Vibration Range
±0.02°
Maximum Controlled Rotation Speed
Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range
Pan axis: 360° continuous rotation
Tilt axis: +185° to -95°
Roll axis: 360° continuous rotation
Controlled Rotation Range
Pan axis: 360° continuous rotation
Tilt axis: +135° to -90° (Upright Mode, +90° to -135° (Underslung and Flashlight Mode)
Roll axis: ±30°, 360° continuous rotation (Roll 360 mode)
Detailed Images

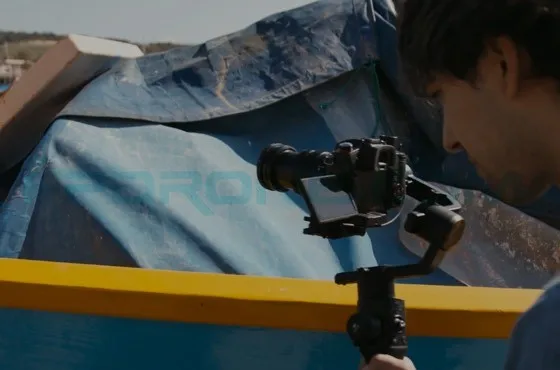

Be in the Moment

Designed in a single-handed form factor for DSLR and mirrorless cameras,the Ronin-S empowers creators to shoot with the freedom of stabilized shots on the move.
Max Operating Speed                            Tested Payload Capacity                             Max Battery Life
              75kph                                                          3.6kg                                                       12hrs

Imagine. Shoot. Create.

The Ronin-S gives independent filmmakers the power to capture spontaneous moments with clarity, smoothness, and a refreshing perspective.

SmoothTrack applies to all three axes. Hold down the front trigger to transition from Upright to Underslung Mode in one seamless movement with no gimbal framework obstruction. New Sport Mode allows you to capture fast-moving scenes instantly.

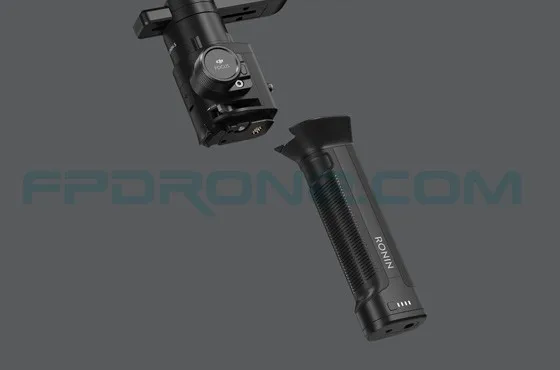

Professional Stability for Every Destination

The detachable, modular design of the Ronin-S makes it easy to fit inside a backpack on your travels. Thanks to the industry standard quick-release plate design, you can easily mount the camera onto the gimbal for tracking shots or on a tripod for stills.

Effortlessly Smooth

Operating the Ronin-S is easy and intuitive to setup with Auto Tune directly on the gimbal for optimal torque control. Powerful, high torque motors actively stabilize your shot when mounted to moving platforms at speeds of up to 75 kph.

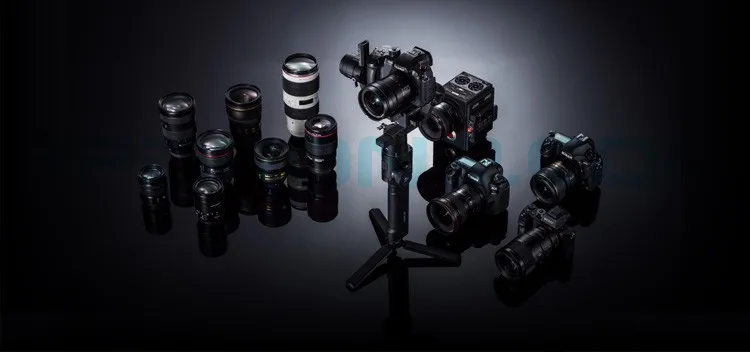

Camera Compatibility

The Ronin-S supports almost any DSLR or mirrorless camera setup on the market, offering direct camera control.

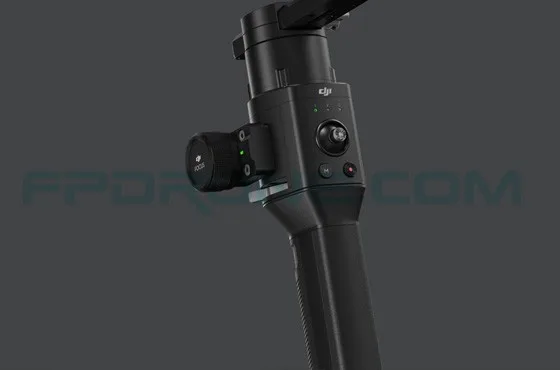

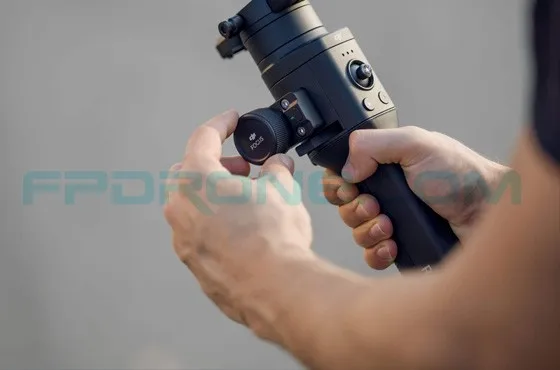

Stay Focused

Focus better on your subject with the easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-S, you can pull focus via the included cable. An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control.

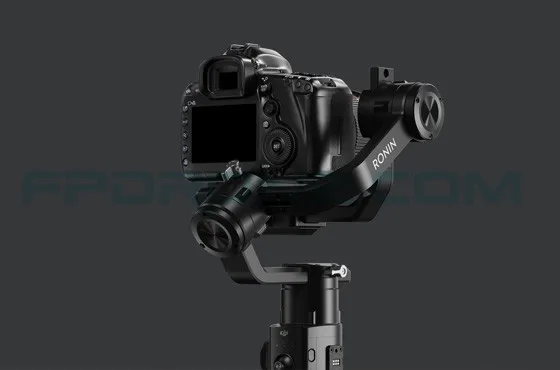

Innovative Design

The Ronin-S's innovative framework elevates camera payload above the roll axis, making the camera's built-in display obstruction free and always in your line of sight. In addition to providing an unobstructed view, the angled roll motor allows for more space to balance bulkier setups.

All-in-One Control

SmoothTrack technology allows you to transition from motion to camera angle with one hand. Switch between three user profiles with a simple click on the M button, and capture fast-moving objects in Sport Mode by holding it down.

Portable. Versatile. Ergonomic.

The ergonomic design of the Ronin-S frees unwanted shake when shifting from underslung to an upright position in one smooth take. The detachable design offers numerous usage scenarios. Mount it to an RC buggy for low-to-the-ground tracking shots or let it act as a stabilized remote head when attached to a jib. This detachment feature also makes it more convenient for easy storage.

Automated Creative Features

The most dramatic scenes unfold with imaginative, carefully planned shots. The Ronin-S includes a suite of automated features within the DJI Ronin app, letting you produce even more creative professional footage to unlock your true filmmaking potential.

Panorama

Timelapse

Motionlapse

Track

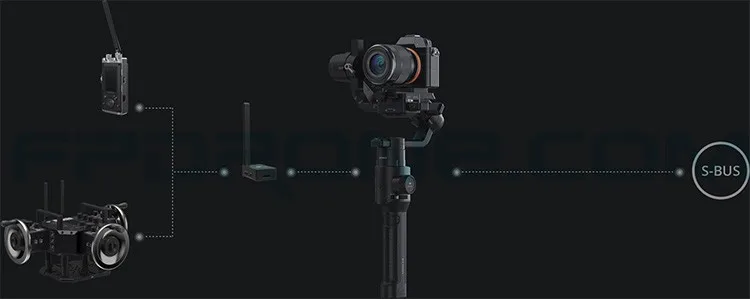

Ecosystem

We understand that sometimes you need more than just a gimbal for your project. The Ronin-S offers multiple accessory mounts, providing full support for add-ons such as a microphone, LED lights, and even an external monitor. Compatibility with DJI control devices offer a wide range of control, such as Force Pro for intuitive operation and Master Wheels for precise gimbal movements. The Ronin-S also features an S-Bus port for compatibility with third-party remote controllers.
