Pesticide irrigation can carry 10kg water tank sprinkler drone battery driven agricultural drone MG1P

  • 1 - 4 Pieces
    US $8952.00
  • >=5 Pieces
    US $7999.00
Model Number:
Agricultural spraying drone MG1P
Report Suspicious Activity
Overview
Quick Details
Type:
Agricultural drone
Condition:
New
Year Built:
2018
Place of Origin:
Guangdong, China (Mainland)
Usage:
Pesticide Spraying
Spray System:
10 L/10 kg
Max Takeoff Weight:
24.5 kg (@ sea level)
Dimensions:
780 mm * 780 mm * 578 mm (arm folding)
Power Battery:
MG-12000
NOZZLE Quantity:
4
NOZZLE Max Spray Speed:
0.43 L/min (per nozzle, for water)
Max Operating Speed:
8 m/s
Max Flying Speed:
22 m/s
Recommended Operating Temperature:
0 to 40℃
Supply Ability
Supply Ability:
9999 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in carton;
Port
Guangzhou/Shenzhen
Product Description

AGRAS MG-1P

One control multi-machine efficiency doubled, FPV camera, intelligent operation planning, high-precision radar, new spray system, new smart battery.

FLIGHT PARAMETERS
Total Weight (without battery)
9.7 kg
Standard Takeoff Weight
23.8 kg (MG-1P)
23.9 kg (MG-1P RTK)
Max Takeoff Weight
24.8 kg (at sea level)
Max Thrust-to-Weight Ratio
1.71 (with 23.8 kg takeoff weight)
Power Battery
Designated DJI Battery (MG-12000P)
Max Power Consumption
6400 W
Hovering Power Consumption
3800 W (with 23.7 kg takeoff weight)
Hovering Time
20min (@12000 mAh & 13.7 kg takeoff weight)
9 min (@12000 mAh & 23.7 kg takeoff weight)
AIRCRAFT RTK
Positioning System:
GPS+GLONASS (global) or GPS+Beidou (Asia-Pacific)
Frequency Point:
GPS L1&L2, GLONASS F1&F2
Asia-Pacific: GPS L1&L2, Beidou B1&B2
Positioning Accuracy
Flat Surface: 1 cm + 1 ppm
Height
2 cm + 1 ppm
Orientation Accuracy:
(0.2/R) °R is the distance between two antennas and the unit is meter.
Velocity Measurement Accuracy:
0.03 m/s
PROPULSION SYSTEM
BATTERY
ESC
Battery Model
MG-12000P
Max Allowable Current (Continuous)
25 A
Voltage
44.4 V
Operating Voltage
12S LiPo
Discharge Rate
20 ℃
Signal Frequency
30 to 450 Hz
Protection Rating
IP54
Drive PWM Frequency
12 kHz
Capacity
12,000 mAh
SPRAY SYSTEM
LIQUID TANK
NOZZLE
Volume
10 L
Model
XR11001VS (0.379L/min)
Standard Operating Payload
10 kg
Quantity
4
Max Battery Size
151mm x 195mm x 70mm
Max Spray Speed
0.43 L/min (per nozzle, for water)
Spray Width
4 - 6 m (4 nozzles, 1.5 – 3 m above the crops)
Droplet Size*
XR11001: 130~250 μm
*Droplet size may vary according to operation environment and spraying speed.
Recommend Model
TX-VK8 (0.525L/min)
Detailed Images

Multi-Aircraft Control Mode

Doubled Efficiency and Control Range

A single MG-1P controller can control up to five MG-1P aircrafts simultaneously, doubling the efficiency of single-pilot operations.This new intelligent remote controller extends the control range to up to 3 km[1] and supports high-resolution video transmission within that range, ensuring flight safety.The new remote controller also supports 4G wireless communications, an interchangeable battery, and new antenna design, providing even more convenience for daily operations.

FPV Camera

Safety with Vision

MG-1P series drones are equipped with 123° FOV wide-angle cameras that transmit clear, front-facing live views. For long distance operation, the remote controller's built-in display indicates obstacle avoidance information to ensure safety. With the help of the FPV camera feed, users can effortlessly record A/B points or waypoints, increasing work accuracy and efficiency.

Flight Performance
Stable, Reliable, and Worry-Free

With eight rotors, MG-1P Series Agriculture Drones employ advanced propulsion and control algorithms to ensure flight safety even if one arm or motor breaks during flight. The motor drive system features a redundant communication mechanism that allows the system to reroute control signals during operation if necessary.

Upgraded High-Precision Radar
Comprehensive Safety

The MG-1P's improved radar system integrates the three high-precision terrain detection radars from previous MG-1S aircraft with an obstacle avoidance radar. This doubles detection sensitivity and allows for multi-directional detection,[2]significantly increasing the aircraft's ability to sense obstacles and follow terrain automatically. The MG-1P can detect centimeter-wide power lines from up to 15 m away. This protects the aircraft not only from power lines, but from trees branches and other common obstacles as well. Active Obstacle Sensing and Avoidance works during the day or at night without being influenced by light or dust. Plus, the radar system's Ingress Protection rating has increased to IP67, making the system even more resistant to dirt, debris, and water.

MG-1P RTK
Precise Positioning with Interference Resistance

The MG-1P RTK is powered by DJI's high-precision D-RTK navigation and positioning technology which offers centimeter-level positioning that is essential for industrial applications. Dual-antenna direction finding technology gives strong resistance against electromagnetic interference, ensuring flight safety even when the aircraft is flying near high-voltage power lines or in other complicated environments.The MG-1P RTK works in tandem with a new base station and D-RTKTM handheld mapper,[3]which receives positioning data from the onboard RTK module to accurately measure fields and transmits results to the remote controller for precise planning.

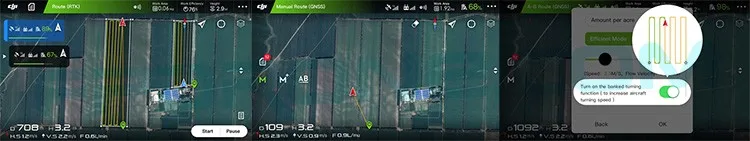

     Multi-Aircraft Control Mode           Multiple Operation Modes                      Banked Turning

New operation modes have been added to the MG app v2.0. Multi-Aircraft Control mode is easy and intuitive, fully empowering users to control multiple aircraft with a single remote controller. Another new operation mode is Banked Turning, which uses optimized flight routes and increases working efficiency by up to 20%. Apart from the new modes, A-B Route Operation Mode, Manual Operation Mode, and Manual Plus Operation Mode are all still available to allow a multitude of control options.
